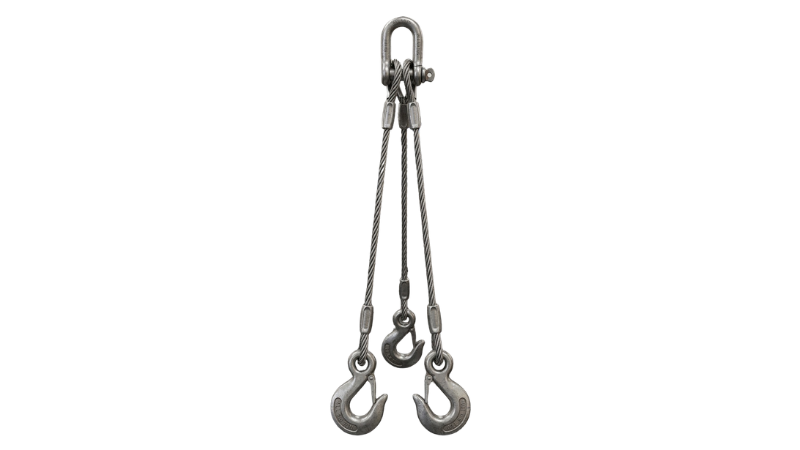

3-LEG

Wire rope sling

feature three independent wire rope legs connected to an alloy master link sub-assembly, designed to lift and stabilize rigid, triangular, or asymmetrical loads requiring three distinct pick points in heavy marine, offshore, and industrial hoisting operations.

Distributes weight evenly across three designated pick points, providing superior stability for complex or irregularly shaped structural components.

Engineered with a heavy-duty main master link and dual sub-links to ensure correct leg alignment and prevent crowding on the crane hook.

Mechanically swaged Flemish eyes with steel sleeves deliver redundant mechanical reserve strength and maximum load retention.

Proof-tested and tagged with Working Load Limits (WLL) calculated for 60°, 45°, and 30° horizontal leg angles.

Class	Termination Type	End Fitting Options	Rope Construction	Primary Advantage
Mechanically Swaged 3-Leg	Flemish Eye & Master Sub-Assembly	Latch Hooks, Thimbles, Shackles	6x19 / 6x36 EIPS IWRC	3-Point Balance & Redundant Mechanical Safety
Poured Socket 3-Leg	Spelter / Resin Sockets + Sub-Assembly	Open & Closed Spelter Sockets	6x19 / 6x36 / Large Dia.	100% Joint Efficiency for Heavy Offshore Lifts
Open/Closed Swaged 3-Leg	Cold-Swaged Sockets + Sub-Assembly	Open & Closed Swaged Sockets	6x19 / 6x36 EIPS IWRC	Low-Profile Joint & Extreme Fatigue Resistance

Request Quote

Model Naming & Series Documentation

Example Designation: SWR-3LS-0750-FLE-HK-EIPS-IWRC-10FT
SWR: Brand / Supplier Identifier (Southwest Wire Rope)
3LS: Product Category (3-Leg Wire Rope Bridle Sling)
0750: Nominal Rope Diameter (0.750 in / 3/4 in)
FLE: Termination Method (Flemish Eye / Poured Socket PSO / Swaged Socket SWA)
HK: End Fitting Type (Eye Hook HK / Heavy-Duty Thimble TH / Self-Locking Hook SLH / Shackle SK)
EIPS: Steel Grade (Extra Improved Plow Steel)
IWRC: Core Type (Independent Wire Rope Core)
10FT: Standard Leg Reach / Length (10 ft)
