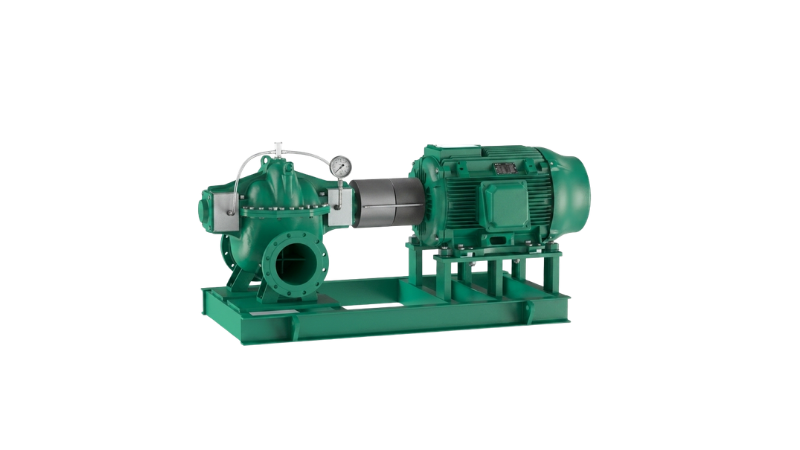

ATMOS TERA-SCH-HE

Axially split pump

Axially split case pump for reliable operation and energy-efficient transport of large volume flows through extensive distribution networks.

  • Reliable continuous duty for an efficient drinking water supply over extensive piping networks – can be tailored to suit your exact requirements
  • Reduced energy costs through high overall efficiency
  • Quiet-running hydraulics with lower vibrations and reduced noise level for increased operational reliability
  • Reduced cavitation tendency through optimised NPSH-performances
Product Line Flange Diameter Shaft Seal Type Max. Pressure Poles Rated Power P₂
Atmos TERA-SCH-HE (6") 6" 125# ANSI AQ7EGG / Graphited Cotton 175 psi / 232 psi 4 50.00 – 500.00 hp
Atmos TERA-SCH-HE (8") 8" 125# ANSI AQ7EGG / Graphited Cotton 175 psi 4 40.00 – 300.00 hp
Atmos TERA-SCH-HE (10") 10" 125# ANSI AQ7EGG / Graphited Cotton 175 psi 4 100.00 – 400.00 hp
Atmos TERA-SCH-HE (12") 12" 125# ANSI AQ7EGG / Graphited Cotton 175 psi 4 200.00 – 400.00 hp
Atmos TERA-SCH-HE (14") 14" 125# ANSI AQ7EGG / Graphited Cotton 175 psi 6 125.00 – 300.00 hp
Atmos TERA-SCH-HE (16") 16" 125# ANSI AQ7EGG / Graphited Cotton 175 psi 6 250.00 – 350.00 hp
