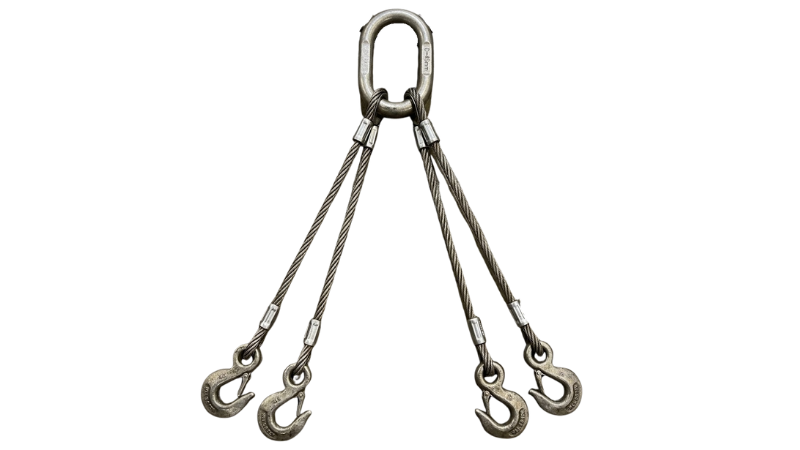

4-LEG

Wire rope sling

consist of four independent wire rope legs connected to an alloy master link sub-assembly, engineered for maximum load distribution and stability when handling square, rectangular, or complex four-point lifting configurations in offshore, marine, and industrial applications.

Provides balanced weight distribution across four symmetrical pick points, drastically reducing load tilt and shifting during critical lifts.

Built with a main alloy master link and secondary sub-links to ensure proper leg orientation and prevent crowding on the crane hook.

Mechanically swaged Flemish eyes with steel sleeves deliver redundant mechanical safety and full rated capacity retention.

Fully tested, tagged, and rated for Working Load Limits (WLL) calculated at 60°, 45°, and 30° horizontal leg angles.

Class	Termination Type	End Fitting Options	Rope Construction	Primary Advantage
Mechanically Swaged 4-Leg	Flemish Eye & Master Sub-Assembly	Latch Hooks, Thimbles, Shackles	6x19 / 6x36 EIPS IWRC	4-Point Balance & Redundant Mechanical Safety
Poured Socket 4-Leg	Spelter / Resin Sockets + Sub-Assembly	Open & Closed Spelter Sockets	6x19 / 6x36 / Large Dia.	100% Joint Efficiency for Heavy Offshore Lifts
Open/Closed Swaged 4-Leg	Cold-Swaged Sockets + Sub-Assembly	Open & Closed Swaged Sockets	6x19 / 6x36 EIPS IWRC	Low-Profile Joint & Extreme Fatigue Resistance

Request Quote

Model Naming & Series Documentation

- Example Designation: SWR-4LS-0750-FLE-HK-EIPS-IWRC-10FT
- SWR: Brand / Supplier Identifier (Southwest Wire Rope)
- 4LS: Product Category (4-Leg Wire Rope Bridle Sling)
- 0750: Nominal Rope Diameter (0.750 in / 3/4 in)
- FLE: Termination Method (Flemish Eye / Poured Socket PSO / Swaged Socket SWA)
- HK: End Fitting Type (Eye Hook HK / Heavy-Duty Thimble TH / Self-Locking Hook SLH / Shackle SK)
- EIPS: Steel Grade (Extra Improved Plow Steel)
- IWRC: Core Type (Independent Wire Rope Core)
- 10FT: Standard Leg Reach / Length (10 ft)
- Mechanically Swaged 4-Leg Bridle Slings
  - Diameter Range: 1/4 in – 2 in (6.4 mm – 52 mm)
  - Top Termination: Alloy Master Link Sub-Assembly (Main Master Link + Dual Sub-Links)
  - Leg Ends: Flemish Eye Mechanical Splice with Steel Sleeve
  - Fitting Options: Sling Latch Hooks, Heavy-Duty Thimbles, Crosby Shackles, Self-Locking Hooks
  - Primary Feature: Four Flemish eye legs connected via master sub-assembly, ensuring maximum 4-point stability and reserve mechanical safety
  - Compliance: ASME B30.9 / OSHA
- Poured Socket 4-Leg Bridle Slings
  - Diameter Range: 3/8 in – 2-1/2 in+ (9.5 mm – 64 mm+)
  - Top Termination: Heavy-Duty Alloy Master Link Sub-Assembly
  - Leg Ends: Resin or Zinc Spelter Poured Fittings
  - Fitting Options: Open Spelter Sockets (with Pins), Closed Spelter Sockets
  - Primary Feature: Delivers 100% breaking strength efficiency across all four legs; designed for heavy offshore containers, skids, and modular marine structures
  - Compliance: ASME B30.9 / OSHA / API 9A
- Open / Closed Swaged Socket 4-Leg Bridle Slings
  - Diameter Range: 1/4 in – 2 in (6.4 mm – 52 mm)
  - Top Termination: Forged Alloy Master Link Sub-Assembly
  - Leg Ends: Hydraulic Cold-Swaged Forged Steel Sockets
  - Fitting Options: Open Swaged Sockets (Pin Connection), Closed Swaged Sockets (Bail Connection)
  - Primary Feature: Low-profile, high-efficiency mechanical joints offering maximum fatigue resistance for high-cycle industrial rigging
  - Compliance: ASME B30.9 / OSHA
