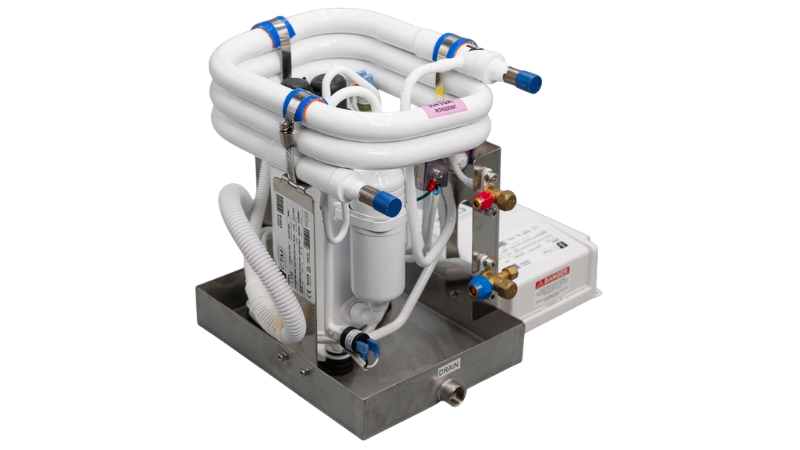

Split System A/C

CX12

 With the condensing unit placed in the engine room and air handlers in the living areas, CTM split systems deliver powerful performance while maintaining a quiet onboard environment.

  • The separate compressor placement minimizes noise in living spaces.

  • Requires less space in cabins, making it ideal for larger vessels.

  • The system’s condensing unit (CX) and evaporator unit (EV) work

CX12
Model / Code Voltage Frequency Soft Start Thermostat Included Capacity Current (Cool / Heat)
CTM CX-12 115V 60 Hz No Yes 12,000 BTU/h 8.7A / 10.5A
CTM CX-12H 230V 50/60 Hz No Yes 12,000 BTU/h 4.1A / 5.2A
CTM CX-12N 115V 60 Hz No No (Unit Only) 12,000 BTU/h 8.7A / 10.5A
CTM CX-12HN 230V 50/60 Hz No No (Unit Only) 12,000 BTU/h 4.1A / 5.2A
