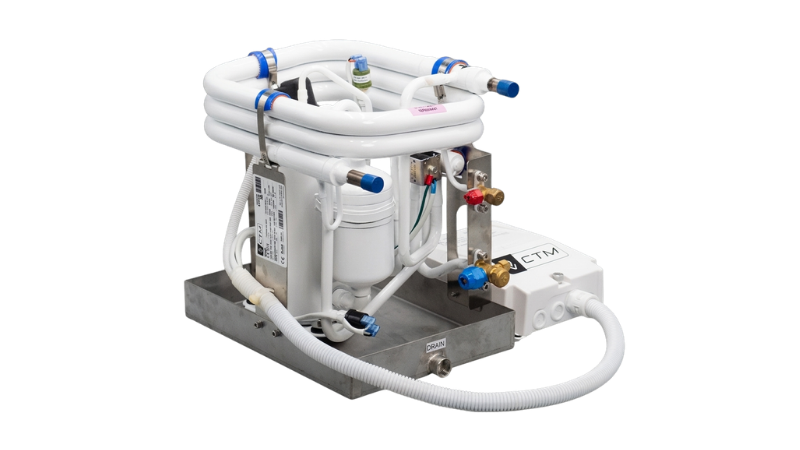

CX16

Split System A/C

 With the condensing unit placed in the engine room and air handlers in the living areas, CTM split systems deliver powerful performance while maintaining a quiet onboard environment.

  • The separate compressor placement minimizes noise in living spaces.

  • Requires less space in cabins, making it ideal for larger vessels.

  • The system’s condensing unit (CX) and evaporator unit (EV) work

Model / Code Voltage Frequency Soft Start Thermostat Included Capacity Current (Cool / Heat)
CTM CX-16 115V 50/60 Hz No Yes 16,000 BTU/h 10.5A / 13.5A
CTM CX-16H 230V 50/60 Hz No Yes 16,000 BTU/h 5.1A / 6.6A
CTM CX-16S 115V 50/60 Hz Yes Yes 16,000 BTU/h 10.5A / 13.5A
CTM CX-16HS 230V 50/60 Hz Yes Yes 16,000 BTU/h 5.1A / 6.6A
CTM CX-16N 115V 50/60 Hz No No (Unit Only) 16,000 BTU/h 10.5A / 13.5A
CTM CX-16HN 230V 50/60 Hz No No (Unit Only) 16,000 BTU/h 5.1A / 6.6A
CTM CX-16SN 115V 50/60 Hz Yes No (Unit Only) 16,000 BTU/h 10.5A / 13.5A
