FA

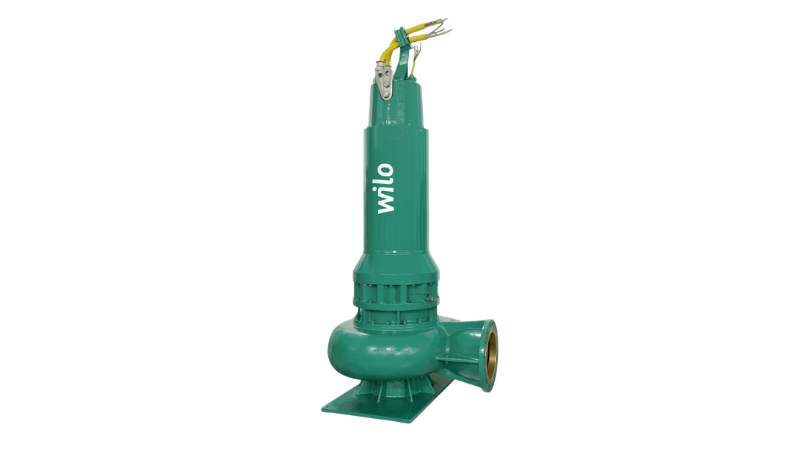

Submersible pump
- Rugged design for portable, wet pit, and drywell installation
- Shaft-Short overhang/large diameter

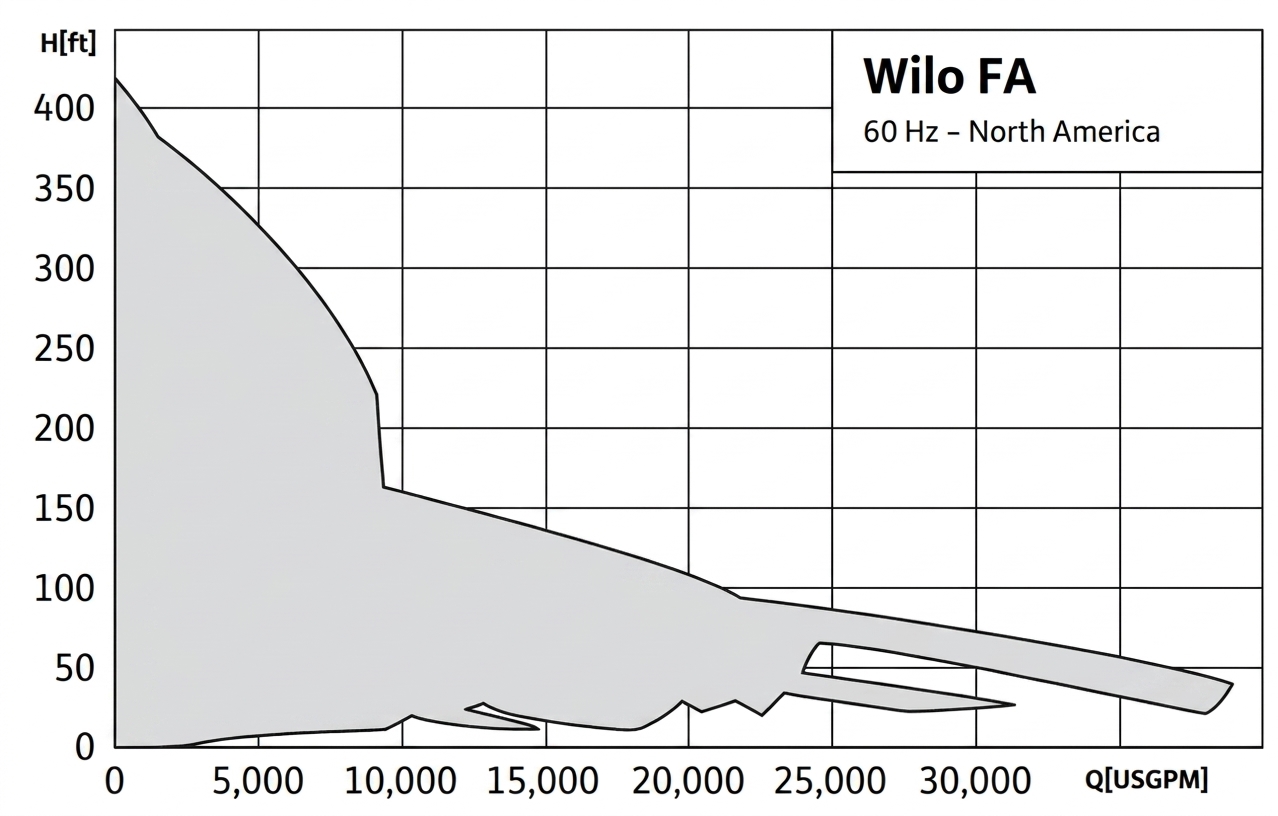

- Continuous operation possible in Q vs H curve extremes
- Internally closed loop cooled motors available
Design
Submersible Sewage Pumps up to 24"
Application
- Sewage Collection
- Storm Water
- Raw Water
- Sewage Treatment
- Dewatering
- Industry
Equipment/function
- Rugged design for portable, wet pit, and drywell installation
- Shaft-Short overhang/large diameter
- L3/D4 Shaft Bending Ratio lowest in industry
- Continuous operation possible in Q vs H curve extremes
- Internally closed loop cooled motors available
- FM explosion-proof rated
Technical Data
- S1 Operating Mode (continuous duty)
- IP rating: IP68
- Max Temp: 104°F (40°C) (higher temperatures on request)
- Silicon carbide mechanical seals
Materials
- Cast Iron Volute (standard)
- Stainless Steel Standard Shaft
- For corrosive fluids, the external surfaces can be coated with Wilo-Ceram C0
- Optional Materials of Construction and Coatings available
Type Key
|
Pump Model |
Wilo-FA08.52W |
|
FA |
Submersible Sewage Pump |
|
08 |
3" Discharge |
|
52 |
Performance Indicator (Flow & Head) |
|
W |
D = Three Vane Impeller E = Single Vane Impeller G = SOLID, Semi Open Impeller T = SOLID Impeller W = Vortex Impeller Z = Two Vane Impeller |
|
Motor Model |
FK17.1-4/8KEx |
|
FKxxx-x/xKEx |
Oil Filled Motor - Wet/Dry Pit |
|
FKx-x/xxK |
Oil Filled Motor - Wet/Dry Pit (non Ex-Proof) |
|
FKT-xx.x-x/xxKEx |
Glycol jacketed, Air filled Motor Wet/Dry Pit |
|
Txx-x/XKEx |
Air Filled Motor - Wet Pit Only |
|
HCxx.x-x/xKEx |
Glycol jacketed, Air filled Motor Wet/Dry Pit |
