SINGLE LENG

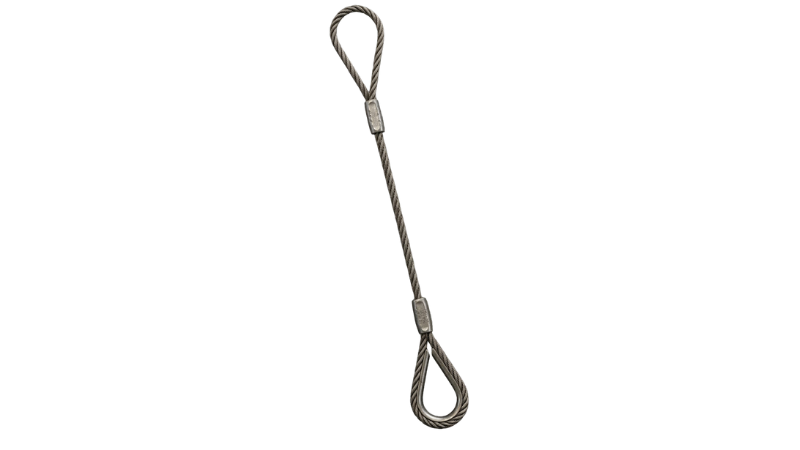

Wire rope sling

heavy-duty lifting assemblies constructed from high-strength wire rope and engineered with specialized end terminations—including mechanical Flemish eye splices, poured spelter sockets, and swaged fittings—to deliver maximum rated capacity and safety in overhead hoisting operations.

Built with Flemish eye splices or socketed ends engineered to achieve maximum break strength efficiency and mechanical security.

Available with standard eye loops, heavy-duty thimbles, sling hooks, master links, and open/closed sockets to fit diverse rigging setups.

Fabricated using EIPS/EEIPS IWRC wire ropes for high resistance to abrasion, crushing, and heavy dynamic loading.

Manufactured, proof-tested, and tagged in full compliance with ASME B30.9 and OSHA overhead lifting standards.

Class	Termination Type	End Fitting Options	Rope Construction	Primary Advantage
Mechanically Swaged	Flemish Eye & Swaged Sleeve	Eyes, Thimbles, Hooks, Links	6x19 / 6x36 EIPS IWRC	High Mechanical Reserve Strength
Poured Sockets	Spelter / Resin Poured Socket	Open & Closed Spelter Sockets	6x19 / 6x36 / Large Dia.	100% Termination Efficiency
Open/Closed Swaged	Cold-Swaged Forged Socket	Open & Closed Swaged Sockets	6x19 / 6x36 EIPS IWRC	Compact & High-Efficiency Joint

Request Quote

Model Naming & Series Documentation

- Example Designation: SWR-SLS-0750-FLE-TH-EIPS-IWRC-10FT
- SWR: Brand / Supplier Identifier (Southwest Wire Rope)
- SLS: Product Category (Single Leg Wire Rope Sling)
- 0750: Nominal Rope Diameter (0.750 in / 3/4 in)
- FLE: Termination Method (Flemish Eye / Poured Socket PSO / Swaged Socket SWA)
- TH: End Fitting Type (Thimble Eye TH / Standard Loop EY / Hook HK / Socket SK)
- EIPS: Steel Grade (Extra Improved Plow Steel)
- IWRC: Core Type (Independent Wire Rope Core)
- 10FT: Standard Reach / Length (10 ft)
- Mechanically Swaged Slings (Flemish Eye)
  - Diameter Range: 1/4 in – 2 in (6.4 mm – 52 mm)
  - Termination Method: Flemish Eye Mechanical Splice with Pressed Steel Sleeve
  - End Fitting Options: Standard Soft Eye, Heavy-Duty Thimble, Latch Sling Hook, Master Link
  - Primary Feature: Dual-layer mechanical safety; the Flemish eye splice holds the full rated load even if the sleeve suffers external surface damage
  - Compliance: ASME B30.9 / OSHA
- Poured Socket Slings (Spelter / Resin Sockets)
  - Diameter Range: 3/8 in – 2-1/2 in+ (9.5 mm – 64 mm+)
  - Termination Method: Liquid Resin or Zinc Spelter Poured Fitting
  - End Fitting Options: Open Spelter Socket, Closed Spelter Socket
  - Primary Feature: Achieves 100% termination efficiency, making it the preferred choice for heavy marine rigging, boom pendants, and extreme line loads
  - Compliance: ASME B30.9 / OSHA / API 9A
- Open / Closed Swaged Socket Slings
  - Diameter Range: 1/4 in – 2 in (6.4 mm – 52 mm)
  - Termination Method: Hydraulic Cold-Swaged Forged Steel Socket
  - End Fitting Options: Open Swaged Socket (Pin Type), Closed Swaged Socket (Bail Type)
  - Primary Feature: Streamlined, low-profile connection with maximum fatigue resistance and exceptional termination strength without the bulk of traditional splices
  - Compliance: ASME B30.9 / OSHA
